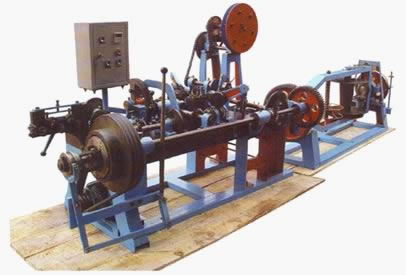

Double Twisted Barbed Wire Machine
Use and capabilty:
GB/T343 - requires the common hot dipped galvanized low carbon stell wire. The products can be used in the national defence, railroad, highway, stockbreeding and agriculture and so on.
This type barbed wire machine is make up by spool wire and twist wire two parts. The machine can produce all kinds of barbed wires. At present, just this kind of machine can produce the barbed wire mesh.
Packaging & Delivery
Packaging Details:According our experience, if the machine packing is in wooden box. One 20'GP container can load 4 sets of machines. If it is nude packing ,one 20'GP container can load 7sets at most.
Features: The machine is made of two parts, the main machine and wire collection parts. It can produce the galvanized barbed wire , PVC barbed wire.
The Detailed parameters :
Strand Wire Diameter |
1.6-2.0mm |
Barbed wire diameter |
1.4-2.8mm |
Barb spacing |
76mm(3’’) ,102mm (5’) |
Number of twist |
4 |
Rated output |
35-40kgs/h |
Speed of drive shaft |
357r/min |
Motor |
2.2KW |
Weight |
1200KGS |
The machine overall dimension |
2800mm*1300mm*980mm |
Technical Parameter
(1) Paramete of double twisted barbed wire machine
No | Items | Unit | Parameter |
1 | electromotor | Modle | Y10012-4 |
2 | electromotor | KW | 3 |
3 | Speed of transmission shaft | time/min | 402 |
4 | Speed of spooling barbed wire | time/min | 470 |
5 | Speed of pulling rope | mime/min | 134 |
6 | Speed of round pallet | time/min | 30-255 |
7 | Size of the main machine | mm | 1900*1300*980 |
8 | Size of the pull wire machine | mm | 1800*750*750 |
Note : Special need should discuss by seller and buyer |
(2) The specification of double twisted barbed wire machine
No | Items | Unit | Parameter |
1 | Distance between barbs | cm | 6-15 |
2 | Twist | Number | 4 |
3 | Diameter of chief wire | Mm | 1.8-3.0 |
4 | Diameter of barb wire | mm | 1.6-2.6 |
Straight and Reverse Twisted Barbed Wire Machine
This machine is used to produce double strand straight and reverse twisted barbed wire. The material used is low carbon steel wire meeting the standard of GB/T343-94. Finished products made by this machine are widely used as fencing and protecting materials in national defense, railway, expressway, agriculture and animal feeding.
This type Straight and Reverse Twisted Barbed Wire Machine is composed by two parts including straight and reverse twisting, barb winding and taking in. The machine is fitted with four disks for wire rewinding.
This machine is easy for operation, with low noise, less cost of energy. A kind of digital controlled machine to produce straight and reverse twisted barbed wire.
Specification
